Pair the timesaving MiCAT Planner with our latest software suite and achieve the most error-free measurement in the shortest time possible. A significant value available for a limited time only.
Leverage the Power of Planning to Create Part Programs — Quickly and Easily
Say goodbye to costly, tedious and time-consuming conventional part programming for CMMs. MiCAT Planner metrology software uses virtual CMM configuration to acquire the current CMM digital twin configuration from the CMM System Manager in MCOSMOS. MiCAT Planner then generates parts automatically — with unprecedented efficiency.
Capable of Cutting Program Time by More than 75%*
Studies show a time savings of 89% for part programs with PMI and 77% without PMI using the MiCAT GD&T wizard.
*Some time studies show programming time cut by over 90%, depending on part complexity and part type.
MiCAT Planner Overview
A Range of Benefits for CAD-Based Parts
MiCAT Planner, included with MCOSMOS v5 for a limited time from Mitutoyo, solves today’s challenges of part complexity, time-intensive programming, fast product lifecycles, reliability, and other user needs.
Easier to use
Minimal learning or writing of programs needed. Fully automated and ideal for any type of user.
Saves time and money
Dramatic time savings that translate into reduced costs — even for short or mid-size runs. Improved efficiency helps manage design revisions within shorter product life cycles.
Digital twin accuracy
Integrated digital twin for part, fixture, and your configured CMM provides detailed graphical representation for dependable, error-free part programs.
Repeatable results
More consistent, higher quality measurement results, thanks to the Mitutoyo Rules Editor and unlimited measuring rule definitions. Fewer discrepancies from differences in program styles. No misinterpretation of design intent.
Features
Innovative, Easy-to-Use Design

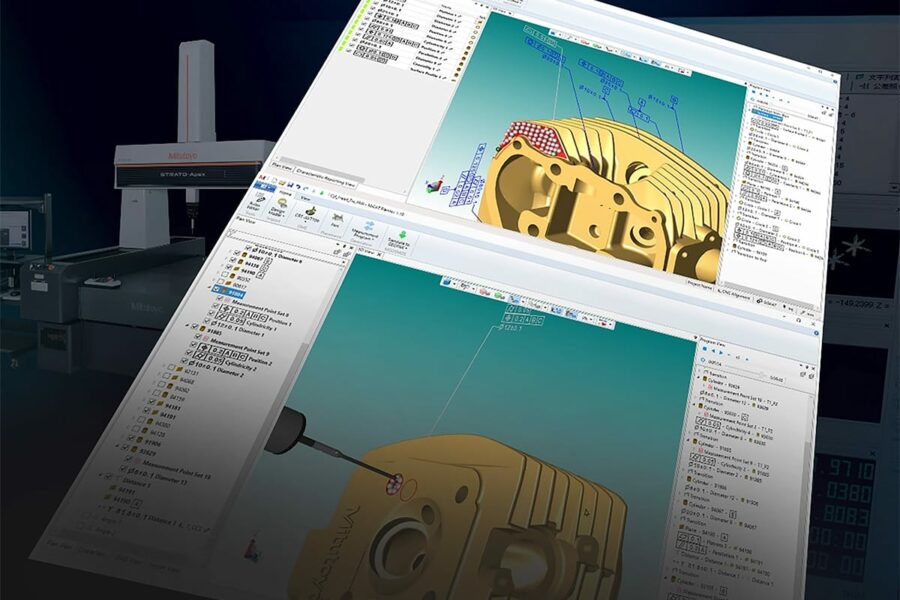

User-friendly interface with graphical views of the 3D model, measurement plan, properties and measurement program.
Rules Editor can define rules to decide the sampling method (touch trigger or scanning/speed), sampling pattern, number of measuring points, based on measured features (plane, line, circle, etc.), or tolerance characteristics (position, size, form, etc.).
Digital twin CMM configuration is created by selecting the CMM configuration from CMM System Manager in MCOSMOS metrology software.
After loading the 3D CAD model, MiCAT Planner reads all Product Manufacturing Information (PMI) data for features and GD&T characteristics, and automatically generates the appropriate measurement plan with rules defined by the user with MiCAT Planner’s Rules Editor. For CAD models without PMI, MICAT Planner’s GD&T wizard allows the user to quickly add the required features and characteristics.
Properties enable users to set parameters for features and characteristics individually using graphical selection tools.
Simple Process
Create Part Programs in Four Easy, Guided Steps
Design Model
Import CAD files with or without tolerance information.
Dimensional Measuring Equipment — your virtual CMM
MiCAT generates the measurement plan automatically using defined rules
Measurement Program Button
MCOSMOS part program automatically generated for simulation review
Translate to Geopak Button
The measurement program is loaded into MCOSMOS Part Manager for immediate execution
Get MiCAT Planner — at no additional cost
Available with the MCOSMOS 5 software platform, the latest in sophisticated 3D coordinate measurement, when you purchase a new Mitutoyo CMM. An exceptional value, for a limited time only.
