Why Precision Matters: The Role of Sub-Pixel Processing in High-Accuracy Measurements
Precision is the bedrock of modern manufacturing, directly influencing product quality, performance, and reliability. Even the slightest measurement errors can result in components that don’t fit together, products that fail prematurely, or costly production setbacks. Sub-pixel processing is revolutionizing the field by enabling measurement systems to detect features smaller than a single pixel, pushing the boundaries of accuracy to new heights.
At the forefront of this technological advancement is Mitutoyo’s Quick Image series equipped with M3 software. This powerful combination exemplifies how sub-pixel processing can transform measurement accuracy and efficiency. In this article, we’ll explore the crucial role of sub-pixel processing in achieving high-accuracy measurements and highlight how the Mitutoyo Quick Image with M3 stands out in this domain. We’ll also touch upon other Mitutoyo precision instruments that are setting new industry standards.
The Growing Importance of Precision in Manufacturing
As products become more complex and tolerances tighten, the margin for error in manufacturing shrinks. Industries such as aerospace, automotive, medical devices, and electronics demand components that meet exact specifications to ensure functionality, safety, and reliability. In these environments, traditional measurement methods may fall short, making advanced technologies like sub-pixel processing essential.
Precision matters because it directly affects product quality, performance, and lifespan. Inaccurate measurements can lead to parts that don’t fit correctly, components that wear out prematurely, or systems that fail under stress. By achieving higher levels of precision, manufacturers can reduce waste, lower costs, and enhance overall product performance.
Understanding Sub-Pixel Processing

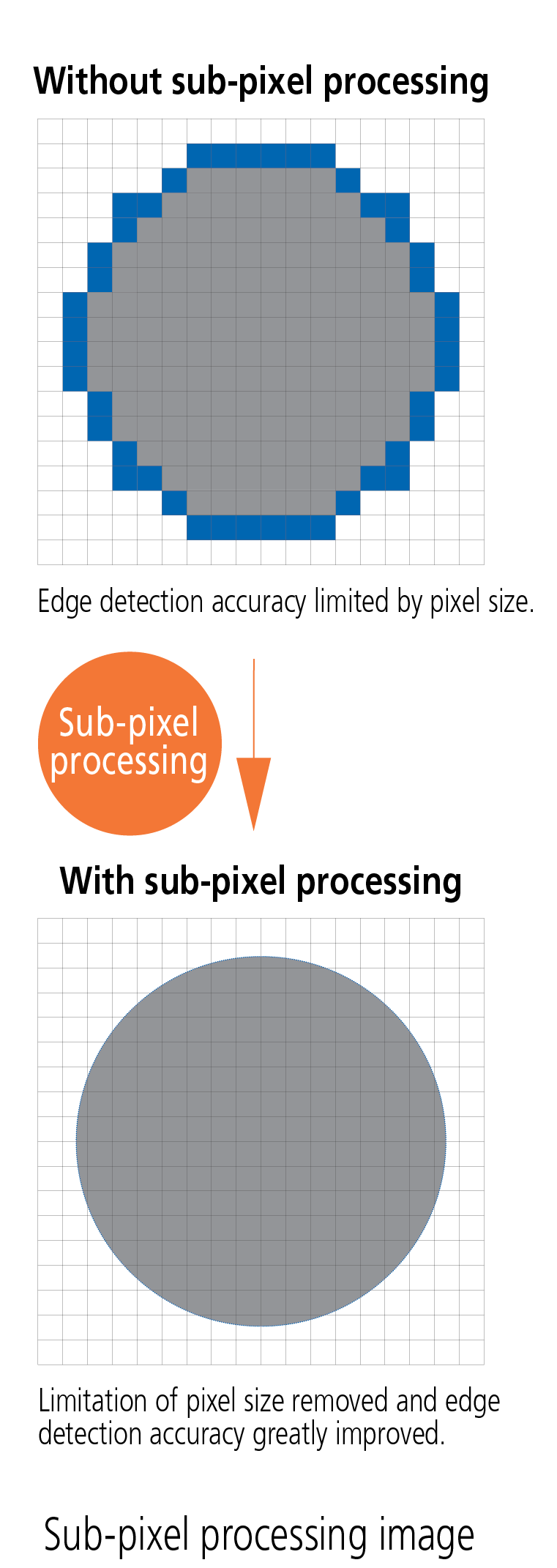

Sub-pixel processing is a technique that enhances the resolution of digital imaging systems beyond the physical limitations of their sensors. It works by analyzing the intensity distribution of light across adjacent pixels to determine the exact position of an edge or feature with greater accuracy than the pixel size would normally allow. This results in more precise measurements, even when dealing with extremely small or intricate features.
In measurement instruments, sub-pixel processing allows for finer detection of edges and dimensions, leading to higher accuracy in the final measurements. This technology is particularly beneficial when measuring small parts or features where every micron counts.
Mitutoyo Quick Image with M3: Precision Redefined
Mitutoyo’s Quick Image series, integrated with the advanced M3 software, harnesses the power of sub-pixel processing to deliver high-accuracy measurements swiftly and efficiently. This system is designed to meet the rigorous demands of modern manufacturing, where speed and precision are paramount.
High-Speed, High-Accuracy Measurements
The Quick Image system excels at providing rapid measurements without compromising accuracy. Traditionally, measurement methods often required a trade-off between speed and precision—measuring quickly might mean sacrificing detail, while achieving high accuracy could slow down production. The Quick Image system breaks this paradigm by leveraging advanced sub-pixel processing technology.
Sub-pixel processing allows the system to analyze images at a resolution finer than a single pixel, enabling it to detect and measure extremely small features with exceptional precision. This means that even as the system operates at high speeds, there’s no loss in measurement quality. This ability is particularly beneficial when dealing with intricate components where minute details are critical to functionality.
In production environments where time is of the essence, this capability is crucial. Manufacturing lines operate on tight schedules, and any delay in the measurement process can create bottlenecks that slow down the entire operation. Such delays not only increase operational costs but can also lead to missed deadlines and strained customer relationships. By providing swift measurements without sacrificing accuracy, the Quick Image system ensures that quality control keeps pace with production.
Moreover, rapid measurement capabilities contribute to reduced cycle times and higher throughput. Manufacturers can perform comprehensive inspections on every part without hindering the flow of production, leading to improved efficiency and productivity. This advantage is vital in industries where meeting high demand without compromising quality is a constant challenge.
The combination of speed and precision also enhances competitiveness. Companies that can deliver high-quality products faster have a distinct edge in the market. They can respond more quickly to customer needs, adapt to changing demands, and bring new products to market ahead of competitors. The Quick Image system empowers manufacturers to achieve these objectives by streamlining the measurement process while maintaining the highest standards of accuracy.
In essence, the Quick Image system with sub-pixel processing technology eliminates the traditional compromises between speed and precision. It provides a solution that meets the rigorous demands of modern manufacturing, where efficiency and quality are both non-negotiable. By ensuring that measurements are both fast and exceptionally accurate, the system plays a pivotal role in reducing costs, enhancing competitiveness, and driving overall success in the production environment.

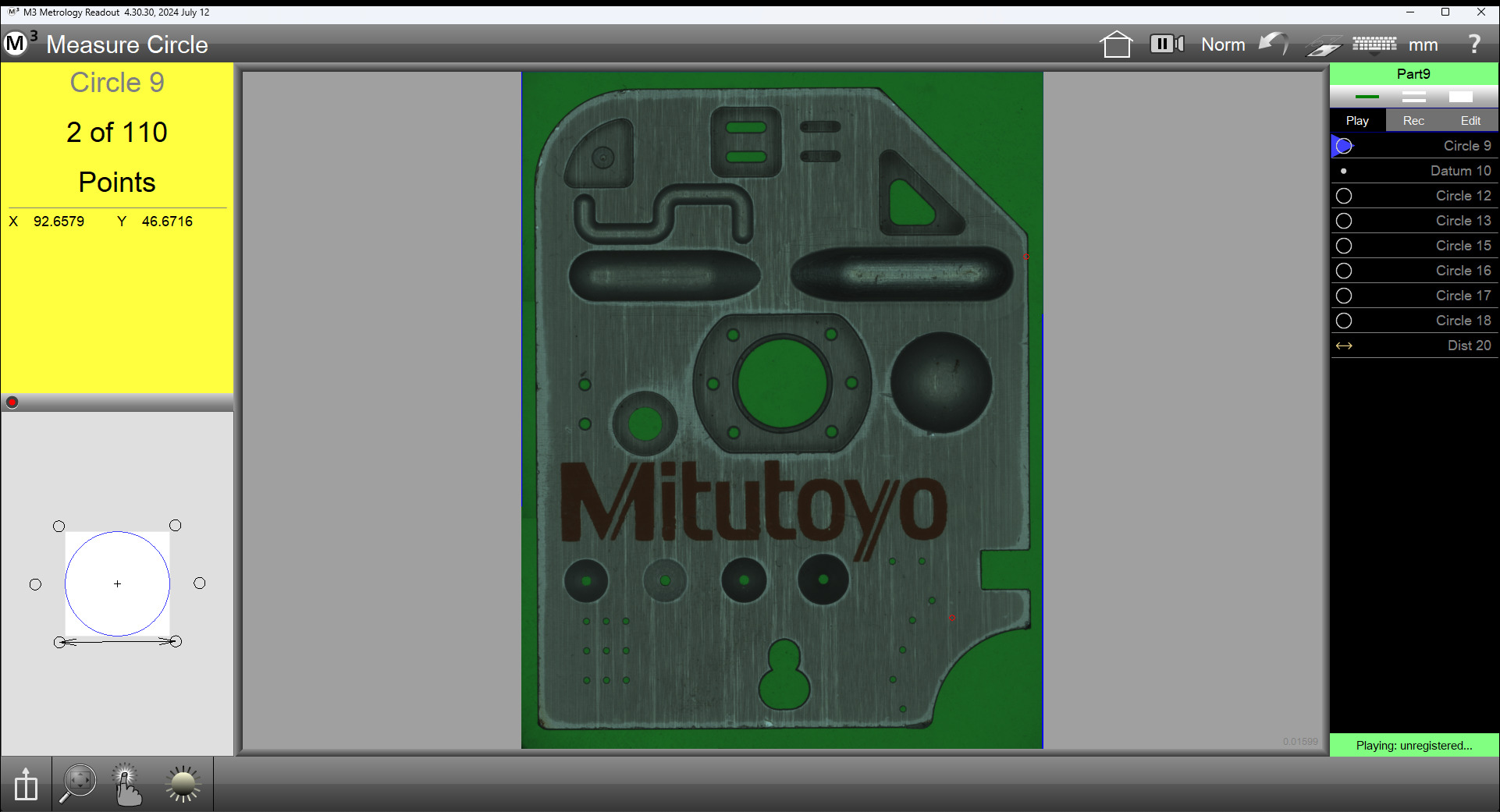

User-Friendly Interface and Advanced Features
The M3 software is designed with the user in mind, offering an intuitive interface that makes complex measurement tasks accessible to users of all skill levels. The layout is clean and organized, allowing users to navigate through various functions effortlessly. Menus are logically arranged, and icons are clearly labeled, reducing the learning curve and enabling operators to become proficient quickly.
Automatic Edge Detection
One of the standout features of the M3 software is its automatic edge detection capability. This function allows the system to identify and select edges of a part or feature without manual input. By analyzing the contrast between the part and its background, the software accurately detects edges—even on components with intricate geometries or varying surface finishes. This eliminates the potential for human error associated with manual edge selection and ensures consistent, repeatable measurements across multiple parts.
Pattern Recognition
The M3 software incorporates advanced pattern recognition algorithms that significantly enhance measurement efficiency. Users can teach the system to recognize specific patterns or features on a part, such as holes, slots, or notches. Once a pattern is defined, the software can automatically locate the part and even automatically load and run a part program without additional setup. This is particularly beneficial in high-volume production environments where parts have identical or similar features. Pattern recognition reduces setup time, minimizes operator intervention, and increases throughput.
Easy Data Management
Effective data management is crucial in modern manufacturing, and the M3 software excels in this area. It provides robust tools for data storage, analysis, and reporting. Measurement results can be automatically saved and organized within the software, making it easy to retrieve historical data for comparison or quality audits. Users can export data in various formats compatible with common statistical process control (SPC) software, facilitating seamless integration into existing quality management systems.
The software also allows for the customization of reports, enabling users to generate detailed documentation that meets specific industry standards or customer requirements.
Minimal Training Required
Thanks to its intuitive design and user-friendly features, the M3 software requires minimal training for operators to perform complex measurements. The straightforward interface guides users through each step of the measurement process, and built-in help menus provide immediate assistance if needed. This ease of use means that even those with limited experience in metrology can quickly become proficient, reducing the time and cost associated with extensive training programs.
Advanced Algorithms Leveraging Sub-Pixel Processing
At the heart of the M3 software are advanced algorithms that leverage sub-pixel processing to achieve exceptional measurement accuracy. Sub-pixel processing involves analyzing the intensity gradients between pixels to determine the precise location of an edge or feature with a resolution finer than the physical pixel size of the camera sensor.
Here’s how it enhances accuracy:
- Enhanced Edge Resolution: By evaluating subtle changes in pixel intensity, the software can pinpoint the exact position of an edge within a pixel. This results in measurements that are significantly more precise than those based solely onpixel-to-pixel comparisons.
- Improved Measurement of Small Features: Sub-pixel processing is particularly beneficial when measuring very small features or components with tight tolerances. It ensures that even minute details are captured accurately, which is critical in industries like electronics or medical device manufacturing whereprecision is paramount.
Consistent Accuracy at High Speeds: The advanced algorithms allow the system to maintain high accuracy even when performing measurements rapidly. This means that production lines do not have to slow down to accommodate precise measurements, leading to greater efficiency without compromising quality.
- Robust Performance in Varying Conditions: The software’s algorithms are designed to perform reliably under different lighting conditions and with parts of various materials and surface finishes. This adaptability ensures consistent measurement accuracy across a wide range of applications.
By integrating these advanced algorithms, the M3 software maximizes the capabilities of the Quick Image system. Users can trust that each measurement is as accurate as possible, thanks to the precise calculations enabled by sub-pixel processing. This high level of accuracy reduces the risk of errors, rework, and scrap, ultimately saving time and resources.
Real-World Impact on Manufacturing
The combination of an intuitive interface and powerful features means that the M3 software not only simplifies the measurement process but also enhances overall productivity. Manufacturers can perform complex measurements quickly and accurately, leading to shorter inspection times and faster production cycles. The ability to generate detailed reports and manage data efficiently supports better decision-making and continuous improvement initiatives.
In essence, the M3 software transforms the Quick Image system into a comprehensive solution that addresses the challenges of modern manufacturing. Its user-friendly design minimizes barriers to adoption, while its advanced capabilities ensure that precision is maintained at every step. This empowers companies to meet the increasing demands for quality and efficiency in today’s competitive market.
Versatility Across Applications
Whether you’re measuring electronic components, medical devices, or mechanical parts, the Quick Image system provides the versatility needed for a wide range of applications. Its non-contact measurement capabilities make it ideal for delicate or soft materials that could be damaged by touch probes. The system’s ability to handle various part sizes and complexities makes it a valuable tool in any precision-focused industry.
Enhancing Quality Control Processes
By incorporating sub-pixel processing, the Quick Image system significantly improves quality control processes. Manufacturers can detect deviations from specifications early in the production process, allowing for timely adjustments and reducing the risk of defective products reaching the market. This proactive approach leads to higher customer satisfaction and strengthens brand reputation.
Other Mitutoyo Precision Instruments Making a Difference
While the Quick Image with M3 software is a standout solution, Mitutoyo offers a comprehensive range of precision instruments that utilize advanced technologies to achieve high-accuracy measurements.
Coordinate Measuring Machines (CMMs)
Mitutoyo’s CMMs are renowned for their precision and reliability. These machines use touch probes or optical sensors, along with sophisticated software, to measure the physical geometrical characteristics of an object.
View Coordinate Measuring SystemsVision Measuring Systems
Mitutoyo’s vision measuring systems combine optical imaging with precision measurement capabilities. They are ideal for inspecting small, complex parts that are difficult to measure with traditional contact methods. Sub-pixel processing allows these systems to detect fine details and edges with greater accuracy, ensuring comprehensive inspections and quality assurance.
View Vision Measuring SystemsSurface Roughness Testers
Surface texture plays a crucial role in the functionality of mechanical components. Mitutoyo’s surface roughness testers, like the Surftest series, utilize advanced processing to provide detailed surface analyses. By measuring parameters beyond the basic Ra values, these instruments help manufacturers achieve optimal surface finishes that enhance performance and longevity.
View Surface Roughness TestersThe Impact of Precision on Industry
Adopting high-accuracy measurement instruments like the Quick Image system has a ripple effect across industries. Improved precision leads to better product performance, increased safety, and higher customer satisfaction. It also enables manufacturers to stay ahead in competitive markets by ensuring that their products meet or exceed industry standards.
In sectors like aerospace and medical devices, where tolerances are incredibly tight and the cost of failure is high, the importance of precision cannot be overstated. Sub-pixel processing technologies provide the tools necessary to meet these exacting demands, pushing the boundaries of what’s possible in manufacturing and engineering.
Future Trends in Precision Measurement
As technology continues to advance, the demand for even higher levels of precision will grow. Innovations in sub-pixel processing and other advanced measurement techniques will drive the development of new instruments and software solutions. Mitutoyo remains committed to research and development in this field, ensuring that its customers have access to the latest and most effective measurement technologies.
Embracing these advancements allows manufacturers to continually improve their processes, reduce waste, and deliver products of the highest quality. By investing in precision measurement technologies today, companies position themselves for success in the increasingly competitive markets of tomorrow.
Conclusion: Precision Is the Path to Excellence
In an era where even the smallest error can have significant consequences, precision in measurement is more critical than ever. Sub-pixel processing stands out as a key technology enabling manufacturers to achieve the high levels of accuracy required in modern industries. Mitutoyo’s Quick Image with M3 software embodies this advancement, offering a powerful solution for high-accuracy measurements.
By focusing on precision, manufacturers can enhance product quality, improve efficiency, and gain a competitive edge. Whether it’s through the Quick Image system or other precision instruments like CMMs and surface roughness testers, Mitutoyo provides the tools necessary to meet these challenges head-on.
