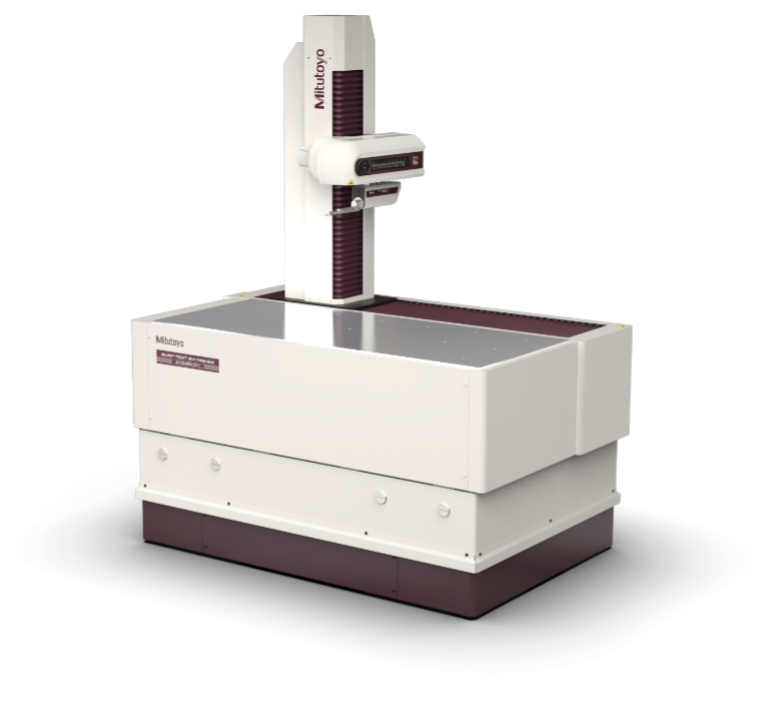

The shaft measurement solution is tailored to measure the surface finish and contour on a wide range of the shaft-type parts, including camshafts, crankshafts, e-mobility rotor shafts, transmission shafts, ball screws, and more. Leveraging the advanced capabilities of the SV-M3000CNC, this solution automates the measurement process from program selection and measurement execution to data output.
• Flexible shaft fixture
Accommodate various shafts such as camshafts, crankshafts, ball screws, and more.
• Maximized inspection speed
The sturdy structure of the X, Y, and Z axes allows traverse speeds of up to 7.78”/s (200 mm/sec). This high-speed positioning helps reduce overall cycle time.
• Automated data
Equipped with FormtracePak and the Universal Interface software, the system automates measurement execution, report generation, and SPC data output compliant with AQDEF standards. Formtracepak generates raw data, plots, and PDF reports after measurement. The Universal Interface software automates operations from scanning part information, running programs, and outputting results, including SPC data compliant with AQDEF standards.
Technical Data
Base Model | SV-M3000CNC
| Maximum range: |
X: 7.78” (200) Y: 19.7” (800) Z: 31.5” (500)(mm)
|
| Resolution |
0.05 µm
|
| Drive Speed |
CNC: 7.78”/s (200 mm/s)
J/S mode: 0-1.97”/s (0-60mm/s)
|
| Measuring Speed |
Up to 0.08”/s (2mm/s)
|
| System Noise Rz*1 |
Up/Down: ->X up/down < 0.2µm
Front/Back: -> X front/back < 0.4µm
|
| A-Axis Inclination angle |
– 45 to + 10 degrees |
| A-Axis Resolution |
0.000225 degrees |
| B-Axis Inclination angle |
+ 90, 0, -90, and -180 degrees |
| Theta 1 Resolution |
0.004 degrees |

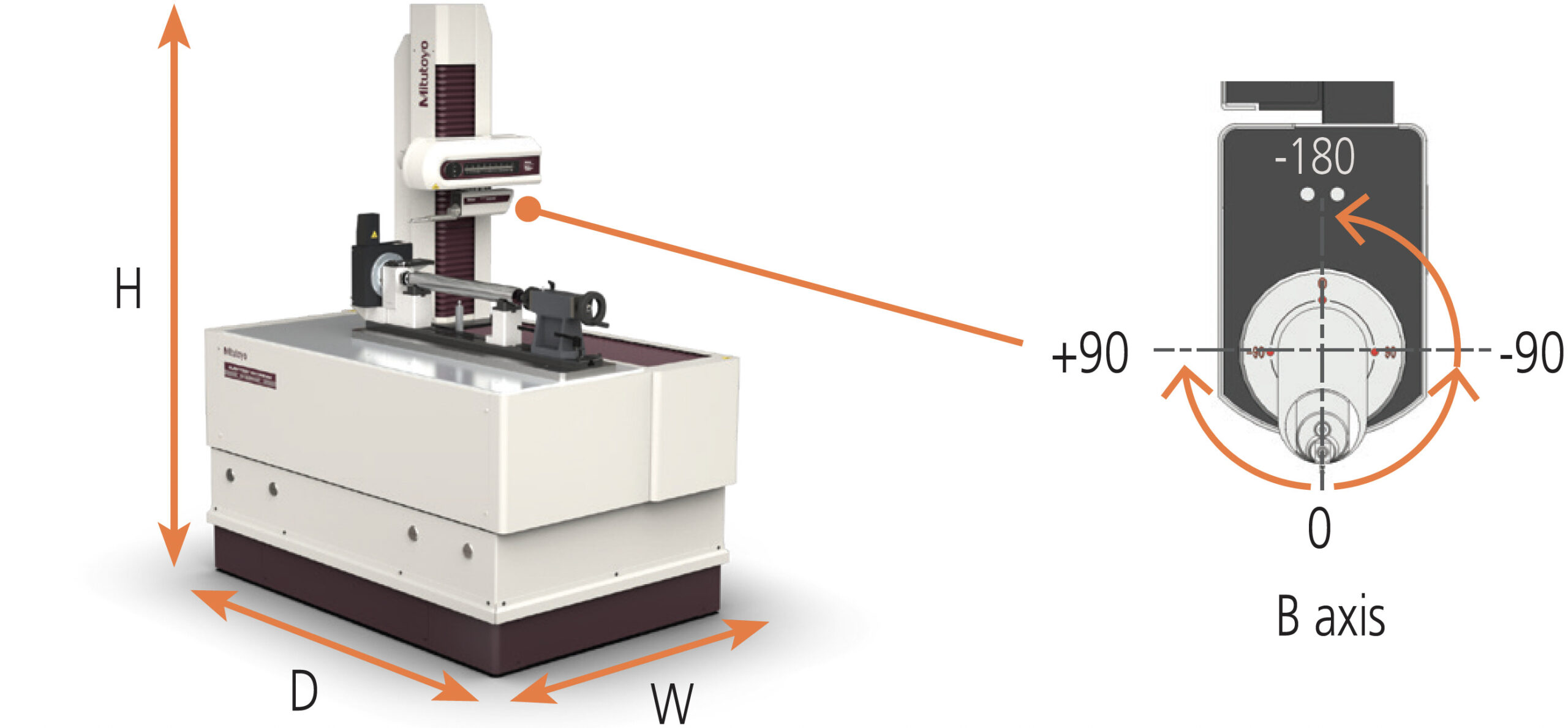

| Dimension |
42.7” x 66.7” x 75.7” (1085 x 1695 x 1922 mm) |
Fixture | Flexible Shaft Holder

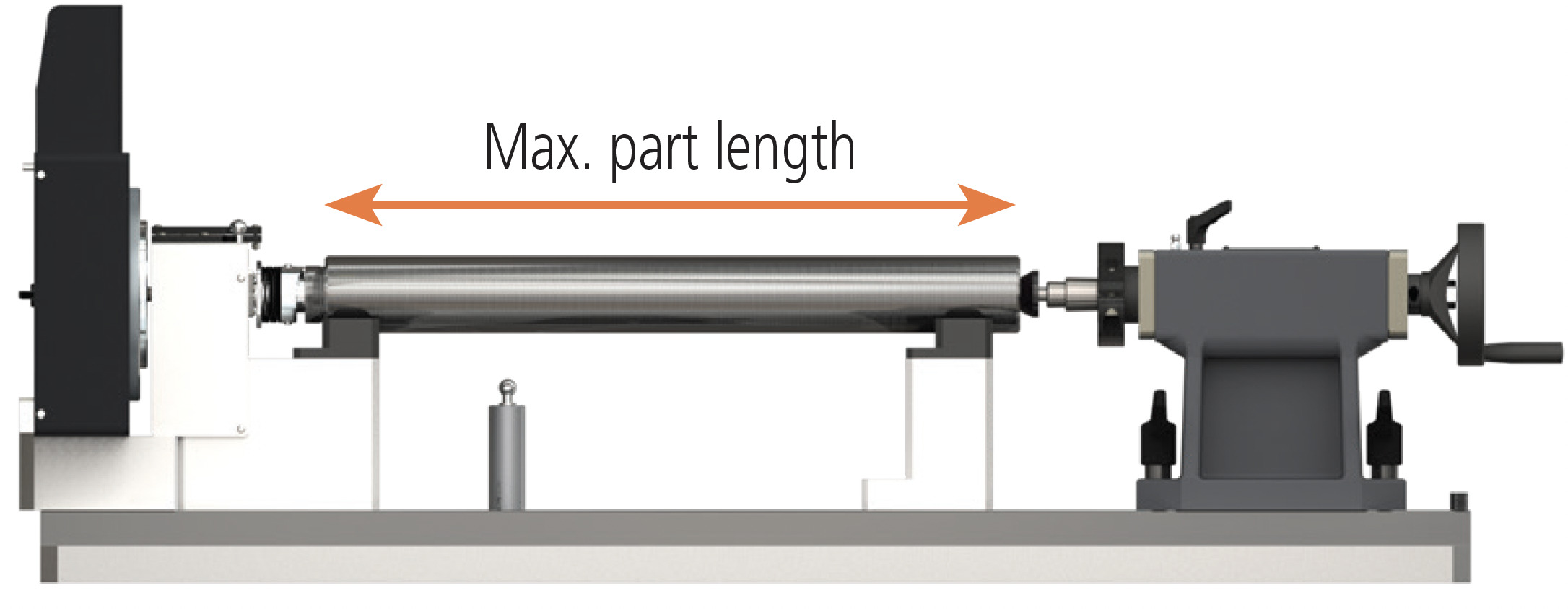

| Max. Part Length |
24” (625 mm)
|
| Max. Part Weight |
To be determined with part prints
|
† Customized Fixture is available upon request.
Related Industry
• Automotive
• Aerospace
• Ship builder, etc.
Application Example
• Camshaft • Crankshaft
• E-mobility rotor shafts
• Transmission shafts
• Ball screw
• Spindles
• Gas turbine shafts
• Shaft thread, etc.
